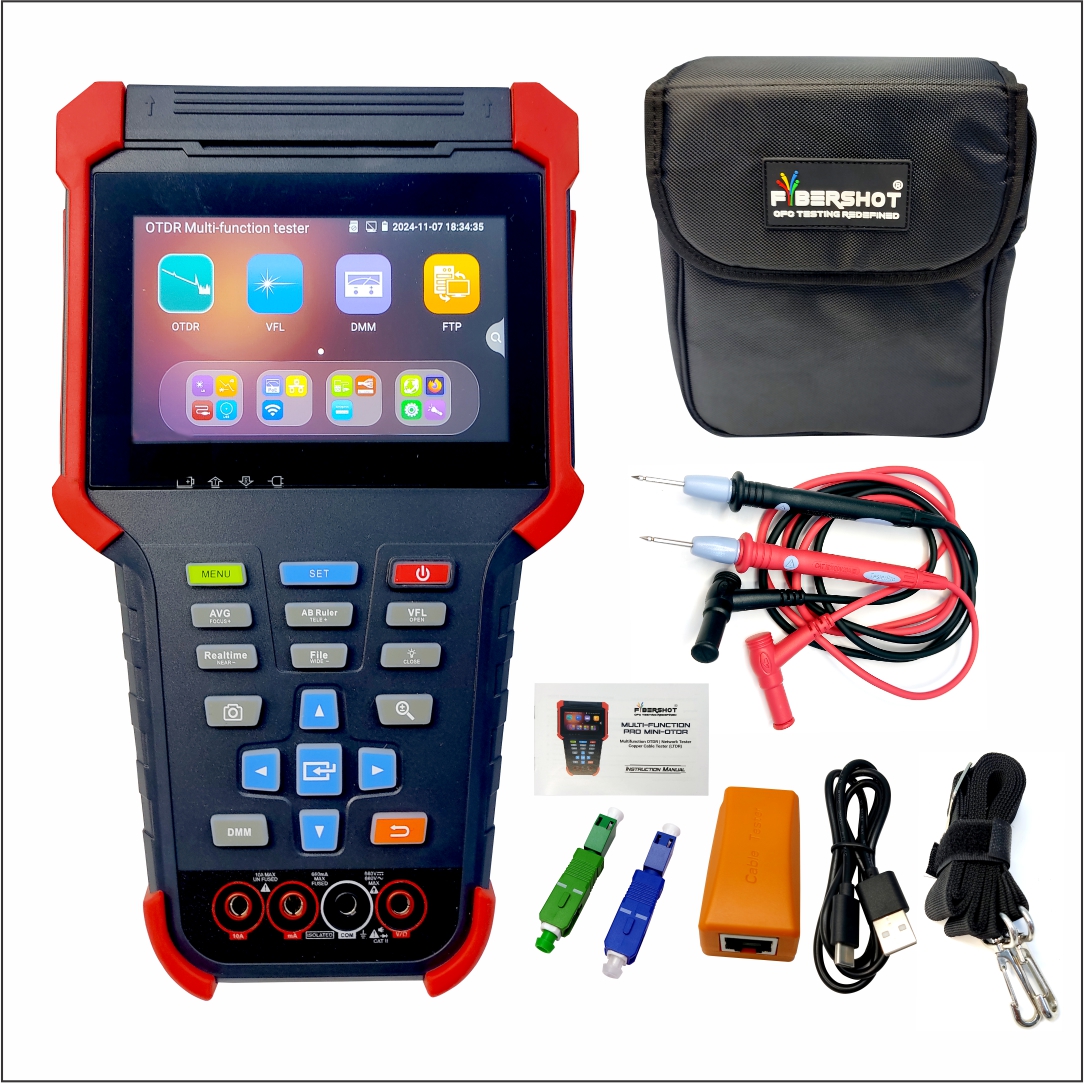

FIBERSHOT PRO MINI OTDR All-in-One Fiber Optic Tester, FTTH, LAN & Network Diagnostic Tool

The PRO MINI OTDR is a compact, all-in-one fiber testing device tailored for telecom professionals and field engineers. Built for fiber optic cable installation, fault localization, and certification, the ST-2700 combines high-precision OTDR testing at dual wavelengths (1310nm / 1550nm) with integrated tools including an optical power meter, visual fault locator (VFL), laser source, and a time domain reflectometer (TDR) for copper cable diagnostics. The inclusion of a digital multimeter (DMM) extends its use to electrical parameter measurement, while built-in PoE++ (Power over Ethernet) detection and live power analysis provide crucial insights into active network components.

Designed for network engineers, FTTH field technicians, CCTV installers, data center specialists, and telecom maintenance teams, the ST-2700 delivers fast, reliable diagnostics for both single-mode and multimode fiber networks, copper cable infrastructure, and IP-based surveillance systems.

Key Features:

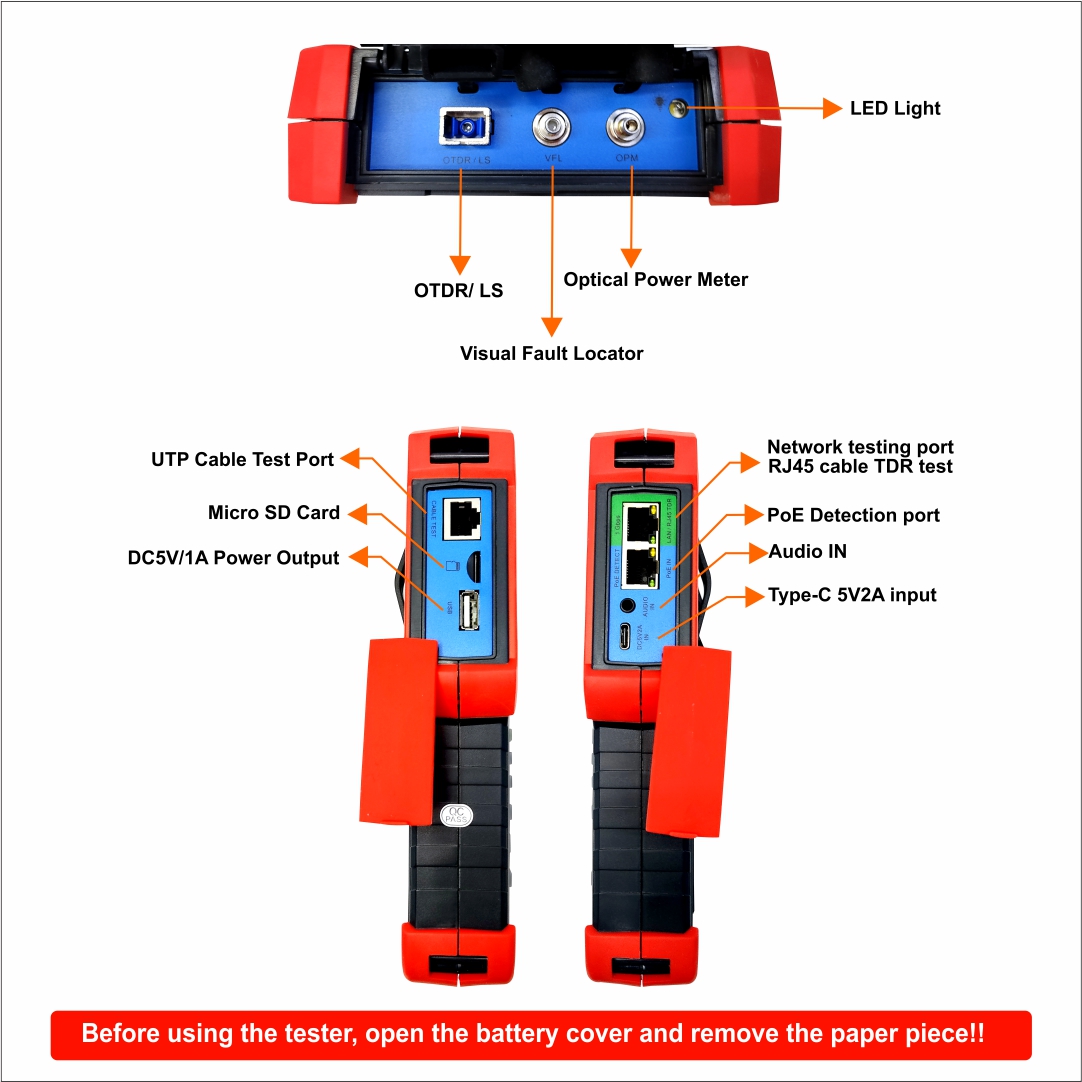

All-in-One Toolkit: Combines OTDR, Visual Fault Locator (VFL), Optical Power Meter (OPM), Laser Source, RJ45 Cable tester, UTP cable length and fault detection, digital multimeter, and network PoE++ analysis in one compact handheld tester.

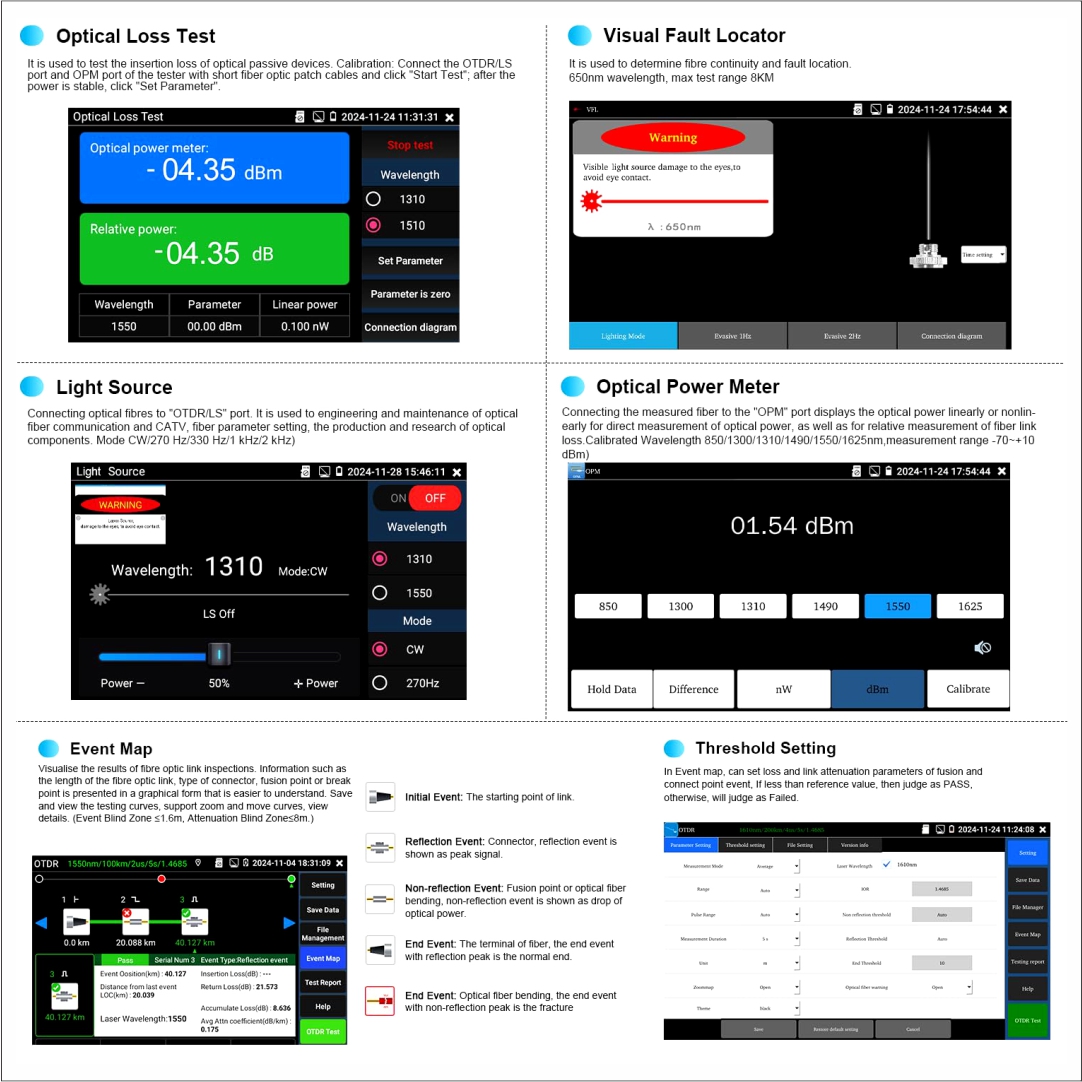

High Dynamic Range: Supports dual wavelengths (1310/1550nm) up to 45dB dynamic range with testing distances up to 250 km, enabling pinpoint detection of fiber breaks, splices, connectors, microbends, and microbends in FTTx, metro networks, long-haul fiber deployments, and ISP last-mile infrastructure.

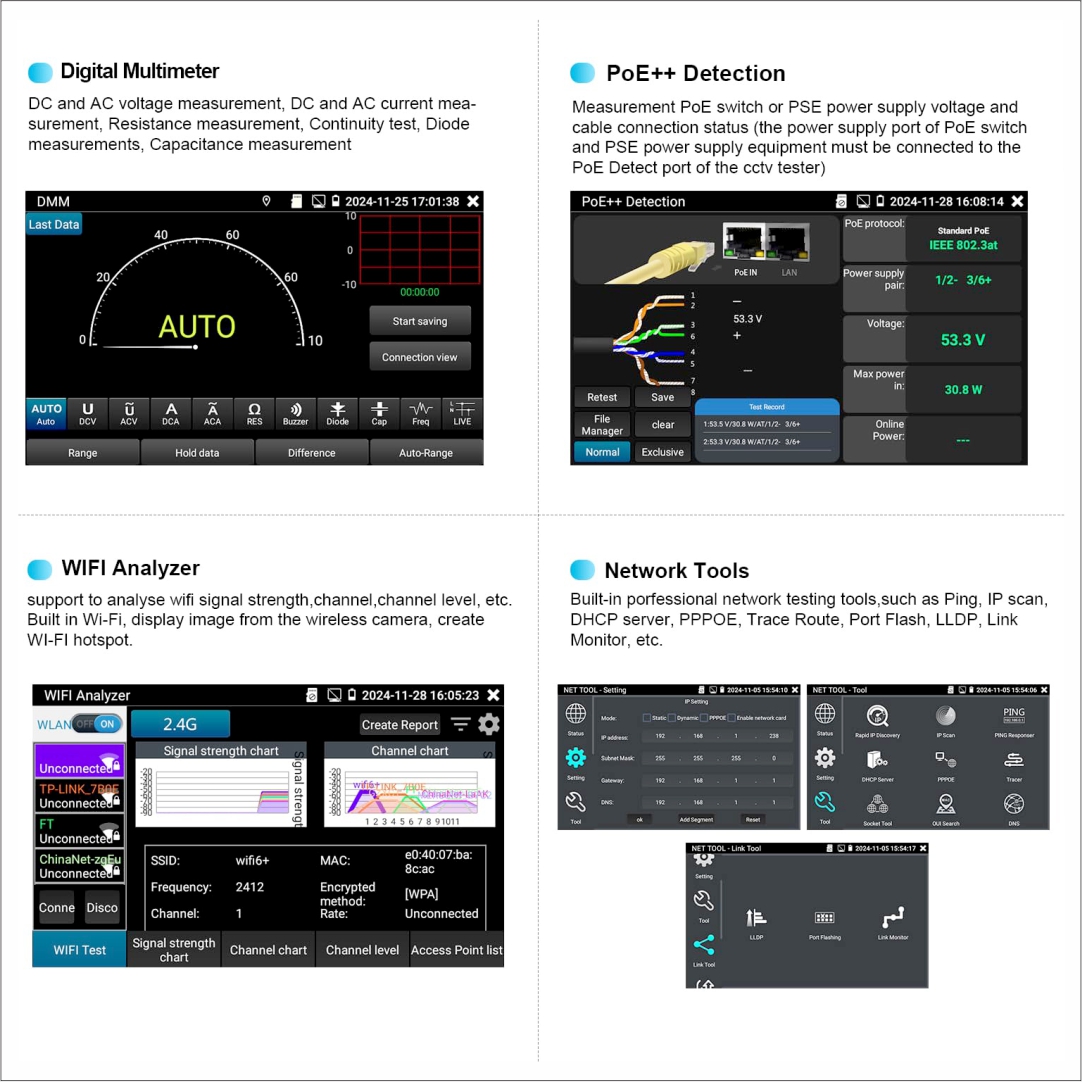

Advanced Digital & Electrical Multimeter: Measure AC/DC voltage, Current, resistance, capacitance, diode, and continuity—ideal for field electrical diagnostics.

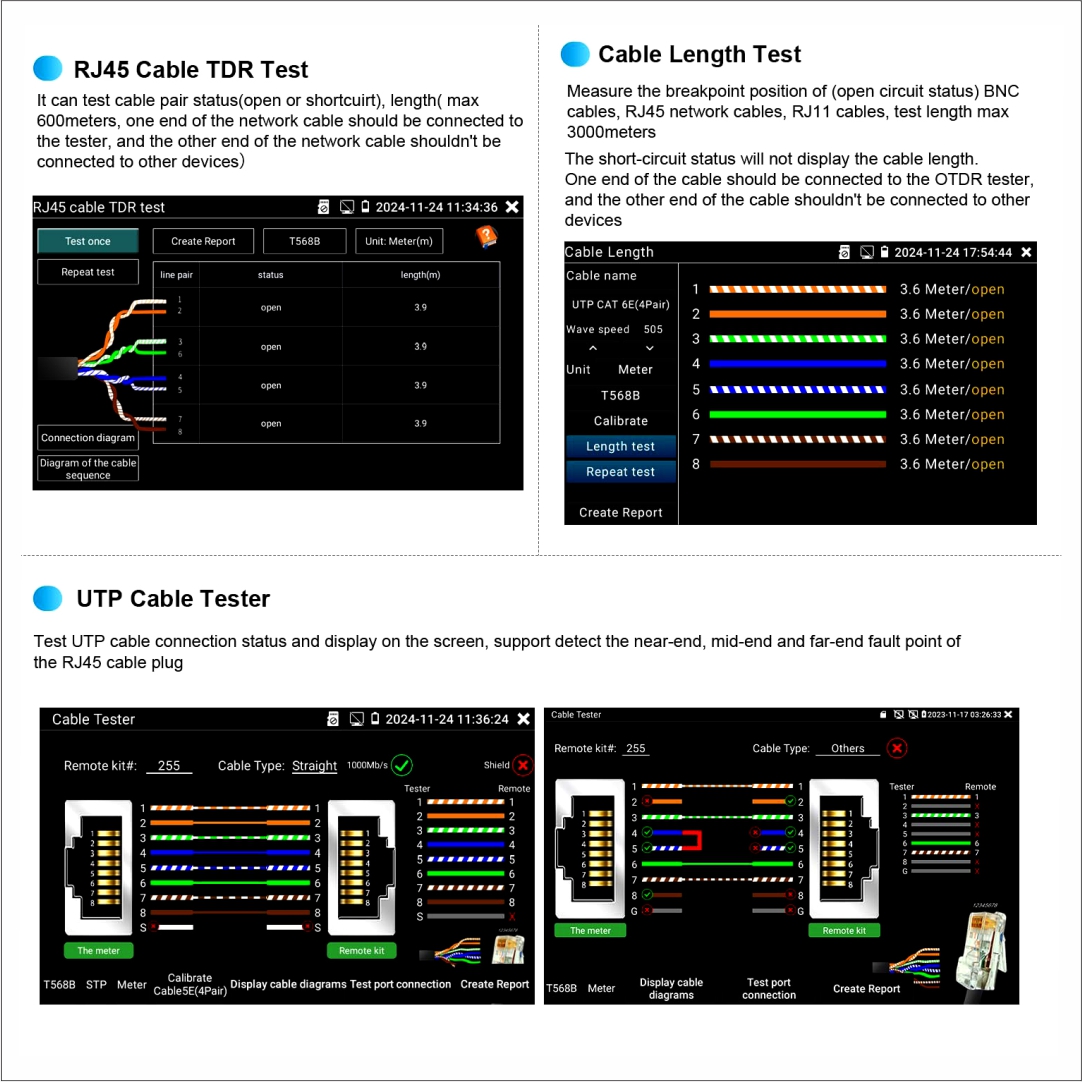

Versatile Cable Testing: Detect faults in UTP, RJ45, and telephone cables with accurate length measurements up to 600m.

Perfect for FTTH & Telecom Maintenance: Streamline fiber optic testing, certification, and fault detection for telecom installations.

Enterprise Network Diagnostics: Analyze fiber and copper links in LANs, data centers, and smart building infrastructure.

Advanced Network & Wi-Fi Diagnostics Integrated Wi-Fi analyzer, ping test, IP scanning, traceroute, DHCP, and PPPoE protocols support sophisticated network troubleshooting for telecom operators and IT teams.

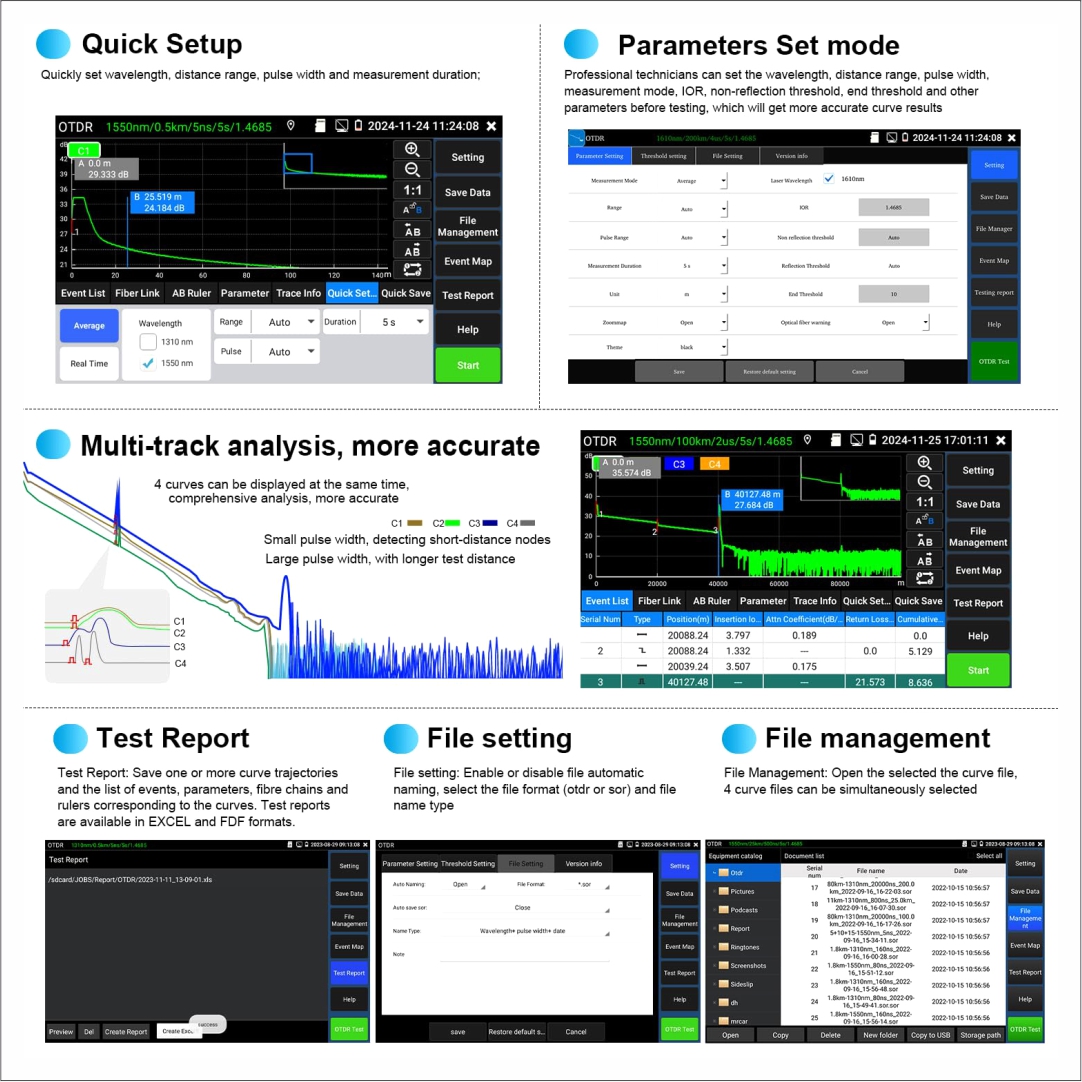

Rugged & User-Friendly Touchscreen Interface Built for harsh field environments, the intuitive color touchscreen supports fast setup and multi-wavelength fiber testing, minimizing downtime and optimizing field technician efficiency.

Efficient Field Commissioning: Ideal for on-site fiber and Ethernet setup, troubleshooting, and maintenance

Multi-Application Power: Use the built-in multimeter and cable tester for electrical work, continuity checks, and cable tracing.
